Engineered for hospitality projects, commercial complexes, and luxury residential developments. Explore our flagship certified export downlight fixtures.
An authoritative analysis of optical engineering, thermal management, international compliance, and OEM supply chain integration for global B2B buyers.
Advanced dark-light reflectors combined with secondary optical lenses yield unified glare ratings (UGR < 13), preserving visual ergonomics across hospitality and high-end workplace environments.
Formulated with cold-forged 6063 aluminum and high-conductivity die-cast ADC12 alloys, maintaining junction temperatures below 65°C to secure 50,000+ hour L70B50 operational life spans.
Fully compliant with CE, RoHS, SAA, RCM, and UL standards. Engineored with IC-4 insulation contact ratings and IP54/IP65 ingress protection for wet locations.
The global LED downlight market has undergone a fundamental transformation, shifting from legacy retrofits to highly integrated, architecturally cohesive downlighting systems. China remains the epicenter of this innovation, hosting vertically integrated industrial ecosystems in Guzhen, Zhongshan, Ningbo, and Shenzhen. Leading OEM and ODM manufacturers no longer merely assemble off-the-shelf components; they conduct fundamental research in semiconductor packaging, optical ray tracing, and driver topology.
When selecting a top-tier Chinese downlight manufacturer, engineering specifiers and commercial importers must evaluate capabilities beyond simple unit pricing. Modern downlight fixtures serve critical functions in architectural aesthetics, energy code compliance (such as ASHRAE 90.1 and Title 24), and human-centric wellness illumination. Understanding the core technical differentiators—such as Chip-on-Board (COB) vs. Surface-Mounted Device (SMD) arrays, driver topologies (external isolated vs. Driver-on-Board), and optical baffle mechanics—is paramount to establishing a sustainable supply chain advantage.
A primary decision matrix in commercial downlight specification revolves around the choice between COB (Chip-on-Board) and SMD (Surface Mounted Device) light engines. Each technology serves specific lighting design intents:
Below is a comparative breakdown of standard enterprise downlight configurations exported from leading Chinese manufacturing lines:
| Category / Class | Light Engine | Cutout Range | Unified Glare Rating | Driver Protocol | Target Application |
|---|---|---|---|---|---|
| Deep Anti-Glare Hotel Spot | COB (Cree / Citizen / Bridgelux) | 75mm - 100mm | UGR < 10 to UGR < 13 | DALI-2 / 0-10V / Phase Dimming | 5-Star Hotels, Art Galleries, Luxury Retail |
| Ultra-Slim Commercial Panel Downlight | SMD 2835 / 4014 (EPISTAR / Sanan) | 90mm - 200mm | UGR < 19 / UGR < 22 | External Isolated / DOB option | Corporate Offices, Educational Facilities |

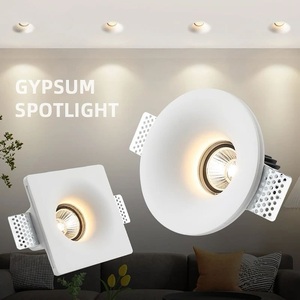

| Trimless Plaster-In Gypsum Spot | Modular COB / GU10 Insert | 55mm - 85mm | UGR < 12 | Universal Triac / DALI Ready | Minimalist Residential, Boutique Showrooms |
| IP54 / IP65 Wet Location Downlight | SMD / COB Silicone Sealed | 90mm - 150mm | UGR < 19 | Triac / SAA Approved Driver | Bathrooms, Balconies, Coastal Resorts |
| 3CCT / 5CCT Selectable Commercial Downlight | Dual-Color Temp SMD Array | 75mm - 200mm | UGR < 19 | DIP-Switch Integrated Constant Current | Electrical Wholesalers, Distributors |
Anticipating market developments ensures strategic buyers align with factories investing in next-generation optical engineering, sustainability, and smart infrastructure.
Circadian rhythm lighting is transitioning from niche to standard specification. Downlights featuring dual-channel CCT tuning (2700K to 6500K) with linear dimming curves enable dynamic workplace wellness. Importers are increasingly requesting 5-CCT DIP-switch selection at the driver level to consolidate SKU management by up to 80%.
Smart downlight modules are evolving beyond traditional wall switches. Native integration of Zigbee 3.0, Bluetooth SIG Mesh, and Matter-compliant drivers allows downlights to operate seamlessly within IoT smart building management systems (BMS), enabling occupancy sensing and daylight harvesting automated controls.
EU Ecodesign directive updates (SLR/ELR regulations) demand modularity. Top Chinese downlight exporters have re-engineered downlight frames to feature toolless twist-and-lock optical engines, detachable driver junctions, and recyclable aluminum housings, facilitating field repair and reducing lifetime carbon footprints.
The operational longevity of a recessed downlight is inversely proportional to its thermal resistance junction ($R_{th,j-a}$). In enclosed ceiling cutouts where air circulation is restricted, heat accumulation accelerates LED lumen depreciation and capacitor dry-out within the electronic driver. Leading exporters employ sophisticated computational fluid dynamics (CFD) modeling to engineer heatsinks that balance conduction, convection, and radiation.
While standard low-cost downlights use stamped aluminum sheet housings, high-reliability commercial fixtures utilize cold-forged 6063 aluminum heatsinks with thermal conductivities reaching 201 W/m·K (compared to ~96 W/m·K for standard die-cast ADC12). Furthermore, phase-change thermal interface materials (TIM) applied between the LED substrate and heatsink ensure minimal thermal interface drop, preserving high color fidelity (CRI Ra > 97, R9 > 80) across decades of continuous operation.
By bridging advanced automated production with stringent European and American testing protocols, our manufacturing partners deliver institutional-grade downlight fixtures engineered to withstand demanding installation environments.
From raw aluminum ingot casting and CNC machining to cleanroom SMT chip placement and automated 100% burn-in testing, every process step is governed by ISO9001 quality management systems.
Complete IES and LDT laboratory test files are provided for Dialux/Relux lighting simulations, backed by third-party certification packages including CE-EMC, CE-LVD, RoHS, SAA, RCM, and ETL/UL listings.
Custom beam angle lenses, tailored reflector finishes (matte black, specular chrome, rose gold), custom cut-out diameters, private-label packaging, and customized driver mounting brackets tailored to your project code requirements.
Before issuing a Purchase Order (PO) to an export supplier, ensure your technical submittal covers the following critical parameters:
Essential guidance addressing technical specifications, international trade regulations, and factory collaboration protocols for engineering buyers.
IC (Insulation Contact) ratings—specifically IC-4 in Australian/NZ standards and IC-rated in North America—indicate that the downlight fixture can be safely covered by thermal ceiling insulation without posing a fire hazard. Non-IC fixtures require a minimum clearance gap (typically 50mm to 100mm) around the heatsink, which can lead to thermal leaks in building envelopes. Certified Chinese exporters engineer IC-4 downlights with sealed thermal caps and lower operating outer temperatures.
Achieving a Unified Glare Rating under 13 requires a multi-tier optical design. First, the light source (COB) is deeply recessed within the aluminum body (cutoff angle > 30°). Second, a primary lens shapes the light beam, while a secondary specular or dark-light black reflector mitigates stray side rays. This ensures that when an observer walks under the ceiling grid, the light fixture appears visual-soft or "dark" unless looking directly upward into the optical axis.
Exporting to Australia requires SAA safety approval or TUV Rheinland certification for electrical safety, alongside RCM (Regulatory Compliance Mark) registration. Drivers must comply with EMC requirements. Additionally, residential construction standards heavily enforce IC-4 thermal ratings and IP54 splash-proof front protection for bathroom downlight applications.
Yes. Commercial downlight suppliers design wide-voltage external isolated drivers rated for 85–265V AC or 180–265V AC input ranges. Incorporating MOV (Metal Oxide Varistor) surge protection devices capable of handling 1kV to 2kV transient voltage spikes protects sensitive LED chips against grid power surges common in commercial installations.
Standard OEM lead times for certified downlight orders range from 15 to 25 business days following sample sign-off and deposit receipt. Minimum order quantities typically range between 100 to 500 units per model, depending on whether custom housing colors (e.g., anodized chrome, custom RAL powder coating) or bespoke driver specifications are requested.
Leading manufacturers submit 100% of finished downlight assemblies to dynamic multi-hour aging lines (typically 4 to 8 hours continuous). Testing includes rapid high-voltage/low-voltage cycling, high-temperature ambient chamber testing, and automated optical spectrum verification to catch early-stage LED component failures prior to final protective export crating.
Connect directly with our engineering team to request factory submittals, photometrics IES files, customized sample kits, or volume production quotes tailored to your project schedule.
